型番：DFB-1310-C5-x-A3(x)-xx-A-x　メーカー：Applied Optoelectronics, inc.　商品コード：L001950

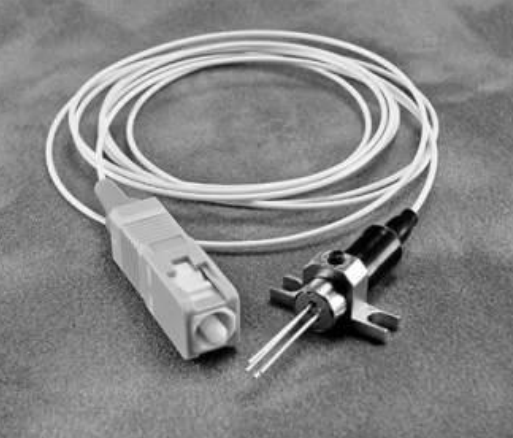

Coaxial Forward of MQW-DFB Laser for CATV forward-path

Coaxial Forward of MQW-DFB Laser for CATV forward-path
Coaxial Forward of MQW-DFB Laser for CATV forward-path

DFB-1310-C5-x-A3(x)-xx-A-x データシート.pdf

波長: 1300nm-1320nm
出力: 2mW-10mW
電流: 40mA-75mA
パッケージ: 5.6-mm TO-style package with SMF pigtail
テクノロジー: DFB Laser

【Description】

The DFB-1310-C5-x-A3(x)-xx-A-x series of MultiQuantum Well (MQW) Distributed Feedback (DFB) lasers have been designed specifically for analog applications, especially for CATV forward-path. The devices feature high output power, wide operating temperature range, low distortion characteristics, low RIN noise, and high side mode suppression. These uncooled, hermetically sealed, coaxial fiberpigtailed packages are a cost effective means of providing a highly linear light source for intermediate-reach and long-reach analog transmission applications.


【Features】

Advanced Multiple Quantum Well (MQW) Distributed Feedback (DFB) Laser Design
Low Distortion
RIN < -145 dB/Hz
Cost-effective Uncooled Laser Technology
SMSR typ. 40 dB
5.6-mm TO-style package with SMF pigtail
Available with integrated thermistor for temperature feedback


【Applications】

CATV Forward-path
Analog transmission
