型番：905D1S03UA、905D1S09UA、905D1S3J03UA、905D1S3J06UA、905D1S3J09UA、905D1S3J12UA　メーカー：LASER COMPONENTS GmbH　商品コード：L001927

High End / Low Cost Pulsed Laser Diodes【905D1SxxUA-Series】

High End / Low Cost Pulsed Laser Diodes【905D1SxxUA-Series】
High End / Low Cost Pulsed Laser Diodes【905D1SxxUA-Series】
High End / Low Cost Pulsed Laser Diodes【905D1SxxUA-Series】
High End / Low Cost Pulsed Laser Diodes【905D1SxxUA-Series】
High End / Low Cost Pulsed Laser Diodes【905D1SxxUA-Series】
High End / Low Cost Pulsed Laser Diodes【905D1SxxUA-Series】

905D1SxxUA-Series データシート.pdf

波長: 895nm-915nm
出力: 6.5W-110W
電流: 7A-45A
パッケージ: Hermetic 5.6 mm CD package

< Description >

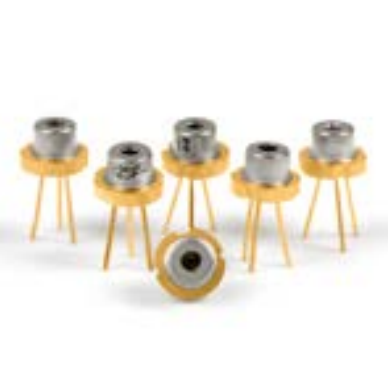

UA series pulsed laser diodes are high quality diodes hermetically sealed in a TO-56 metal housing. Produced in large quantities, they can compete in price with PLDs in a plastic housing. In addition, they are highly reliable, possess excellent overdrive capabilities, and feature optimal thermal stability and a very precise chip alignment inside the housing.

As a single element design, the 905DxxUA series achieves a peak power of 6 W to 19 W. The multi-junction versions (905D1S3JTxxUA) deliver a peak power of 40 W, 80 W, and 115 W at 100 ns and a duty cycle of 0.1%.

< Features >
▪ Single and multi-junction devices up to 110 W
▪ Hermetic 5.6 mm CD package
▪ Excellent temperature stability
▪ Ultra precise mechanical tolerances
▪ Fully RoHS compliant

< Applications >
▪ Range finding
▪ Surveying equipment
▪ Weapons simulation
▪ Laser radar
▪ Obstacle detection
▪ Medical
▪ Automotive

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ 株式会社アルクゥズ
要問い合わせ 光貿易株式会社
要問い合わせ 株式会社アイ・アールエム・システム（IR Components のみ）
要問い合わせ 株式会社オプトサイエンス
