型番:DA532-15-3(20X95)-CON メーカー:Picotronic GmbH 商品コード:L000191
メーカー希望小売価格: €329,33
波長: 532nm-
出力: 15mW-
電流: 180mA-450mA
電圧: 2.7V-3.3V
パッケージ: MODULE
テクノロジー: Dot Laser
拡がり角: A - 0.1 mrad

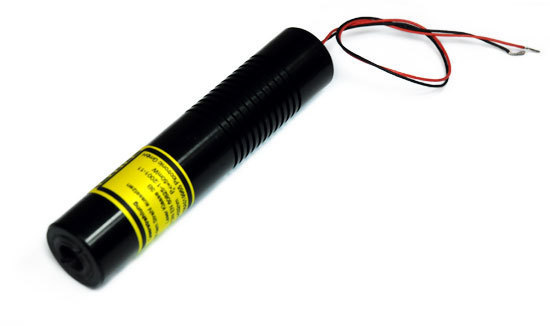

Dot lasermodule, green, 532nm, 15mW, 3V DC, 20x95mm, class 3B, Centerspot <4mm@10m,
Spot with diffraction rings <20mm@10m, incl. connector 2.5mm
< Main Parameters (*) >
Wavelength typ 532 nm
Optical Output Power typ 15 mW
Operating Voltage min 2.7 typ 3 max 3.3 V DC
Operating Current min 180 typ 350 max 450 mA
Operating Temperature min 15 max 30 °C
Storage Temperature min -40 max 80 °C
< Main Data >
Warranty 1 years
< Technical Parameters >
Lifetime > 5,000 h
RoHS yes
< Optical Parameters >
Beam Shape Dot
Laser Class 3B
Divergence A - 0.1 mrad
Beam Diameter 8 mm
Size of Laserdot <4mm@10m
Operating Distance 350 m
Optics glass lens AR coated
Beam Mode TEM00
Laser technology YVO4+KTP
Stability +/- 20% @ 15-30°C
Focus collimated
Warm up time < 15 min
< Electrical Parameters >
Potential of Housing isolated
Connector 2.5 mm DC socket (GND pole inner)
< Mechanical Parameters >
Size Ø20x95 mm
Material aluminium
Cable length 100 mm
Output Aperture 8 mm
Housing Color black
Weight 74 g
(*) Over the complete operating temperature range
