型番：DENLD008　メーカー：Denselight　商品コード：L001866

1480nm, 15mW SLED

1480nm, 15mW SLED
1480nm, 15mW SLED

メーカー希望小売価格: Request Price 波長: 1480nm-1480nm
出力: 15mW-15mW
パッケージ: butterfly
テクノロジー: SLED

Product Overview:

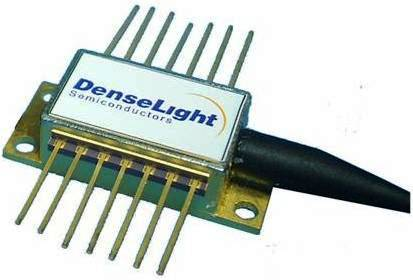

A broadband SLED that operates in a true inherent superluminescent mode. This superluminescent property generates broader band at higher drive currents in contrast to other conventional SLEDs which are ASE-based, where high drive tends to give narrower band. Its low coherence reduces Rayleigh backscattering noise. Coupled with high power and large spectral width, it offsets photoreceiver noise and improves spatial resolution (in OCT) and measurand sensitivity (in sensors). The SLED is available in 14-pin BTF package. It is compliance with the
requirements of Bellcore Document GR-468-CORE. Enabled by DensePICTM spread spectra bandgap engineering technology, future generations of DenseLight SLEDs promise higher chip powers (up to 50mW possible), and
broader spectral bands (beyond 120nm). Higher levels of integration may feature integrated SLEDs with phase modulators, optical couplers and photodetectors into a complete optical sensor chipset.
