型番:E520-12-5-20(24X96) メーカー:Picotronic GmbH 商品コード:L000180

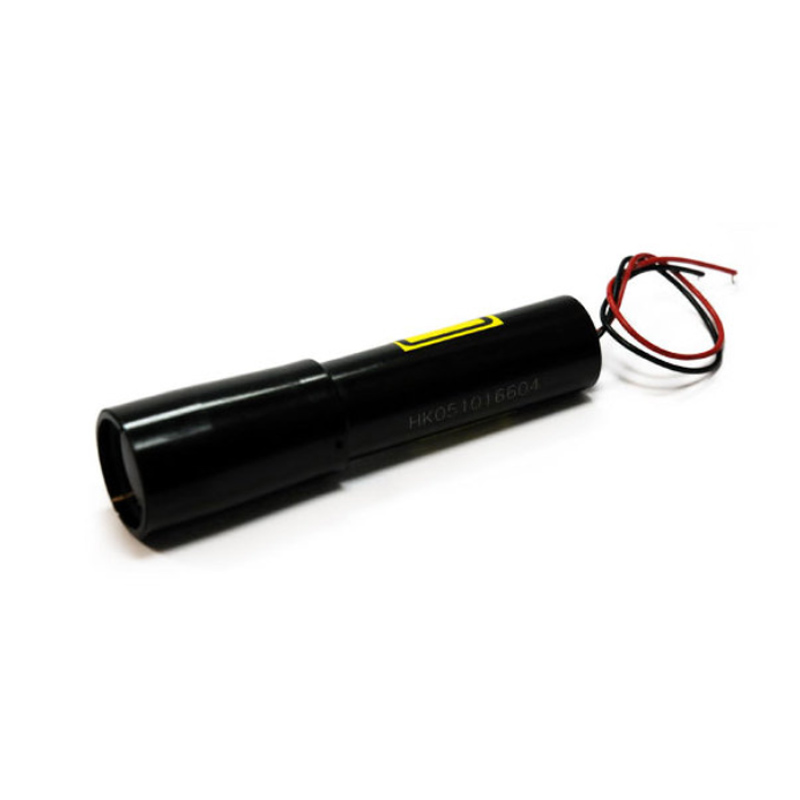

12mW Green Expander Laser

メーカー希望小売価格: €452,86 波長: 520nm-
出力: 12mW-
電流: 90mA-210mA
電圧: 4.5V-5.5V
パッケージ: MODULE
テクノロジー: Expander Laser
拡がり角: E - 0.6 mrad

Expander laser, green, 520nm, 12mW, 5V DC, 24x96mm, class 3R, elliptical beam profil

• Machine Vision
• Particle measurement

< Main Parameters (*) >
Wavelength typ 520 nm
Optical Output Power typ 12 mW
Operating Voltage min 4.5 typ 5 max 5.5 V DC
Operating Current min 90 typ 160 max 210 mA
Operating Temperature min -10 max 60 °C
Storage Temperature min -40 max 80 °C

< Main Data >
Warranty 1 years

< Technical Parameters >
Lifetime > 5,000 h
RoHS yes

< Optical Parameters >
Beam Shape expander
Laser Class 3R
Divergence E - 0.6 mrad
Beam Diameter 20 mm
Size of Laserdot 22mm@10m
Operating Distance 150 m
Optics glass lens AR coated
Laser technology Single Mode Diode
Stability +/- 3% @ -10-50°C
Focus fixed (10.0m)

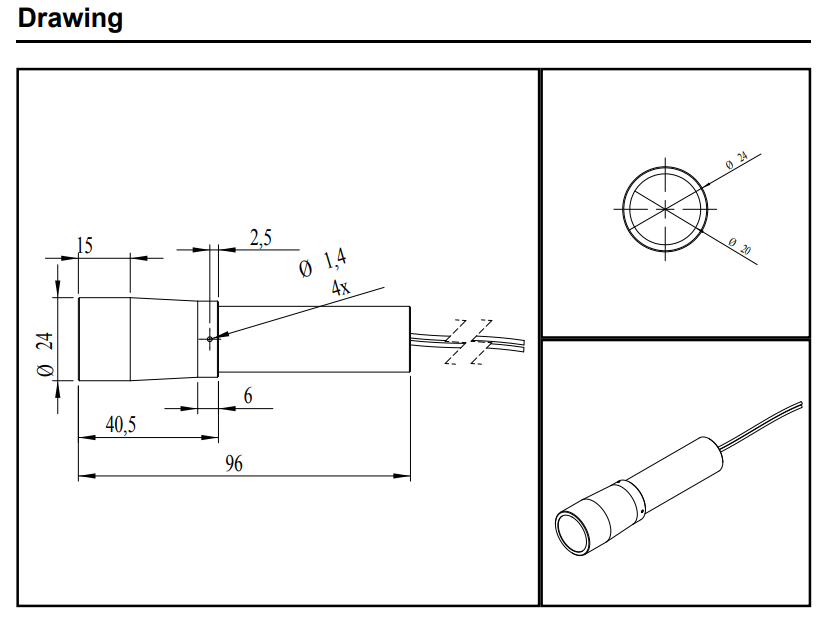

< Mechanical Parameters >
Size Ø24x96 mm
Material aluminium
Cable length 100 mm
Wire type Belden, Typ 1007, 26AWG
Output Aperture 20 mm
Housing Color black
Weight 50 g
Stripping of wire 5 mm

(*) Over the complete operating temperature range
