型番：　メーカー：JENOPTIK　商品コード：L001661

CW, passively cooled, 976nm

CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm
CW, passively cooled, 976nm

波長: 976nm-976nm
出力: 50W-50W
パッケージ: fiber coupled module
テクノロジー: high power CW array

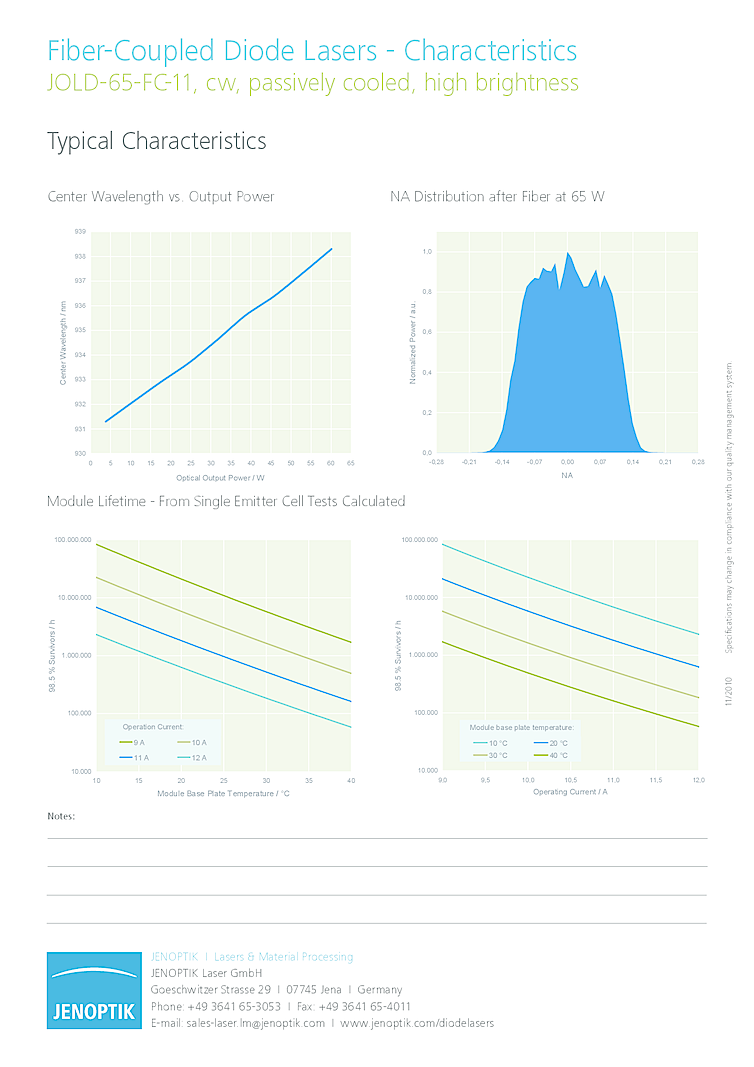

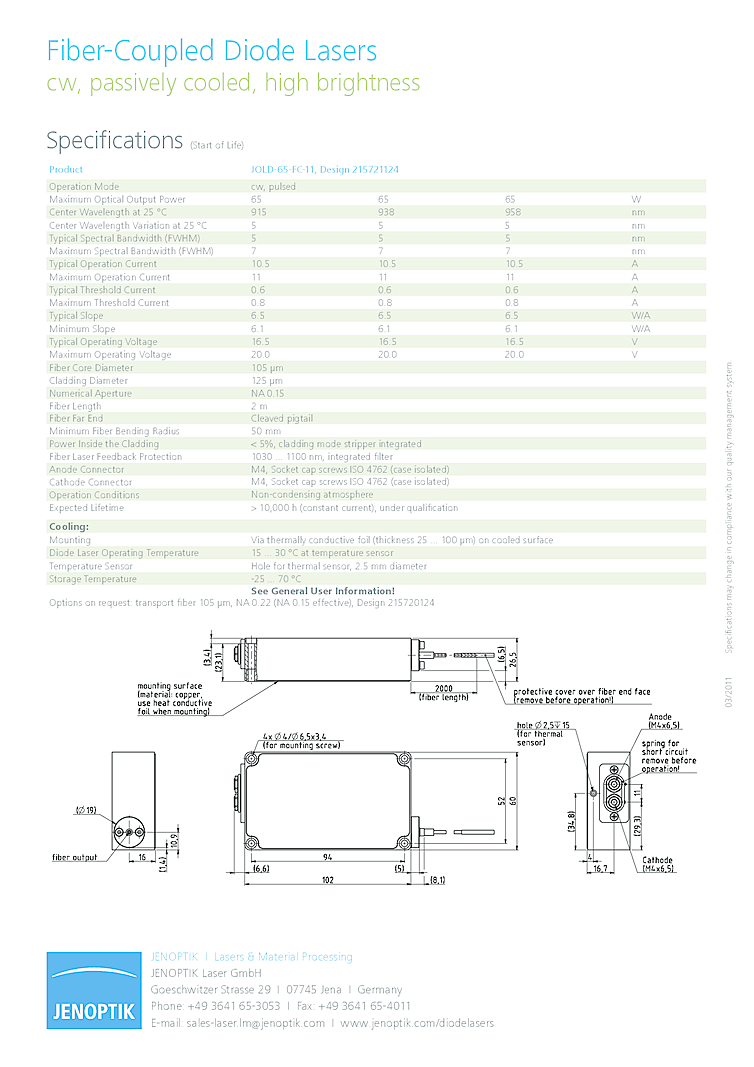

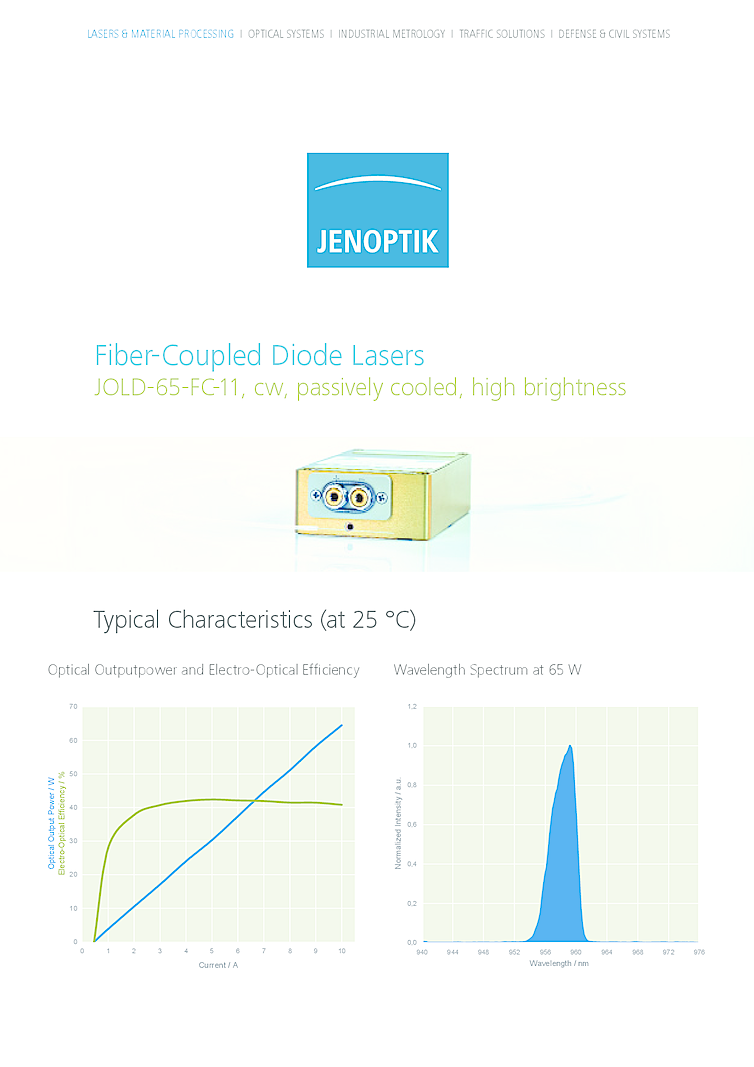

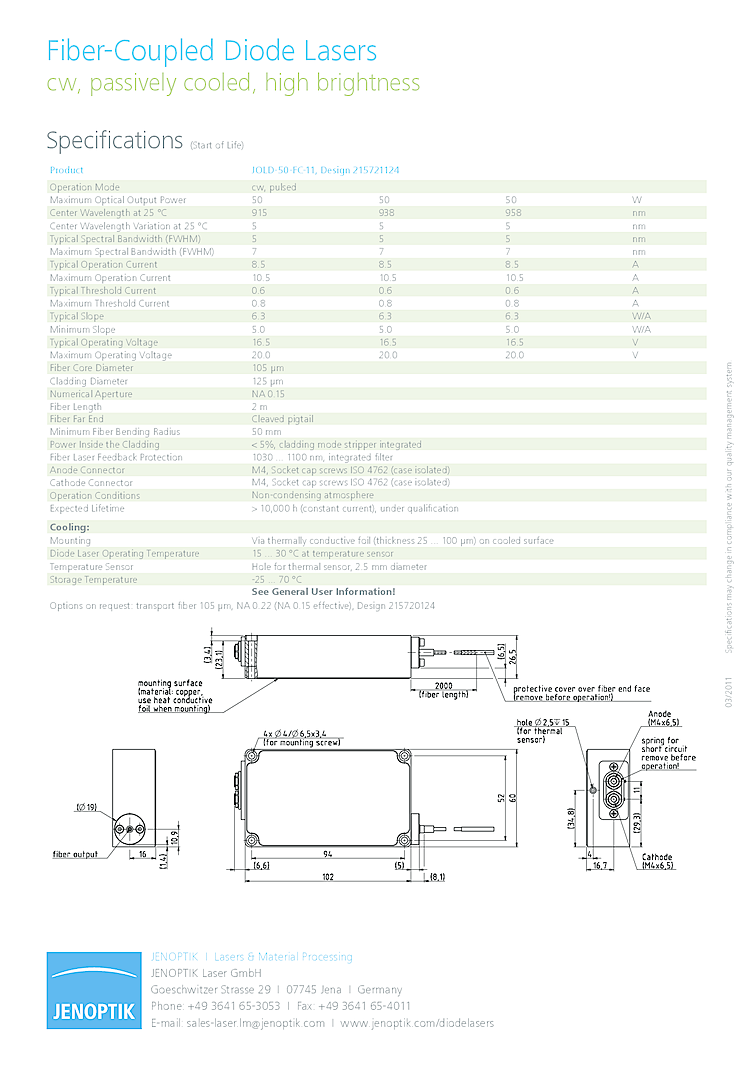

976nm Jenoptik Laser Diode is a fiber-coupled module which is specified as a CS, passively cooled and high brightness device. The data sheet attach details key features and benefits as follows. Typical operation current is specified at 8.5 Amps. These 976 nm lasers offer high optical output power at 50 Watts from a fiber core diameter of 105 micro-meters. The NA is specified at 0.15. These diode lasers are specified for cooling via mounting plate and offer a long lifetime of greater than 10,000 hours. Application are pumping of fiber lasers and material processing.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ イエナオプティック　ジャパン株式会社
