型番：　メーカー：JENOPTIK　商品コード：L001469

938nm, 30W Laser Diode

938nm, 30W Laser Diode
938nm, 30W Laser Diode
938nm, 30W Laser Diode
938nm, 30W Laser Diode

波長: 938nm-938nm
出力: 30W-30W
パッケージ: fiber coupled module
テクノロジー: high power laser array

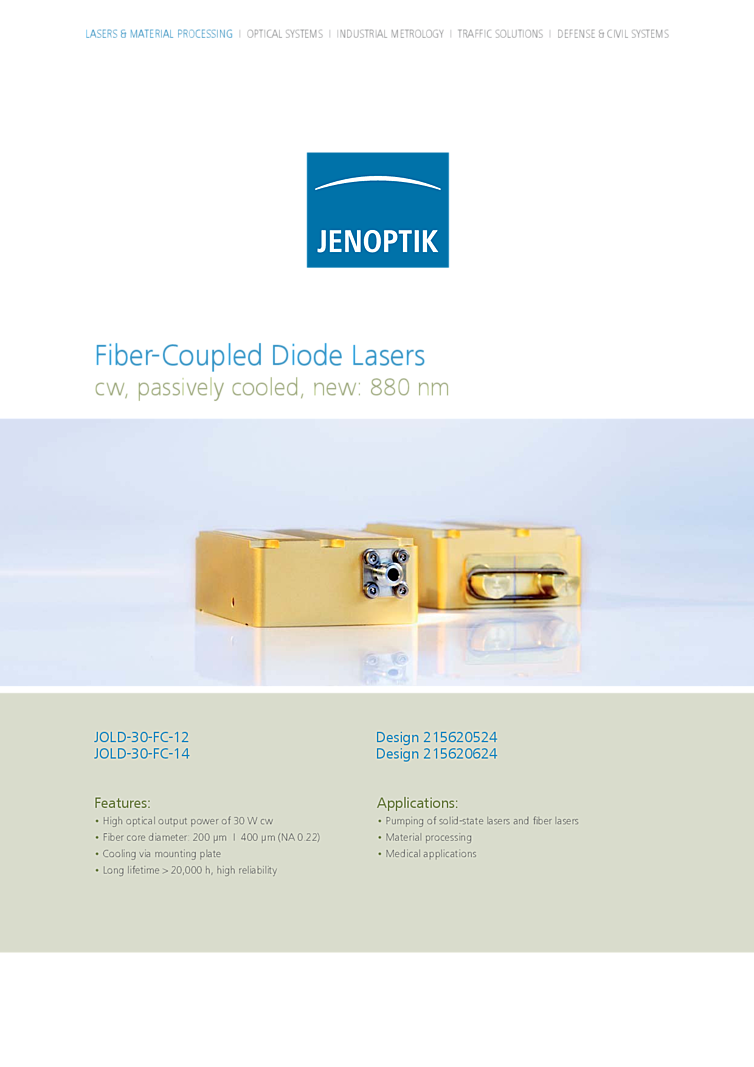

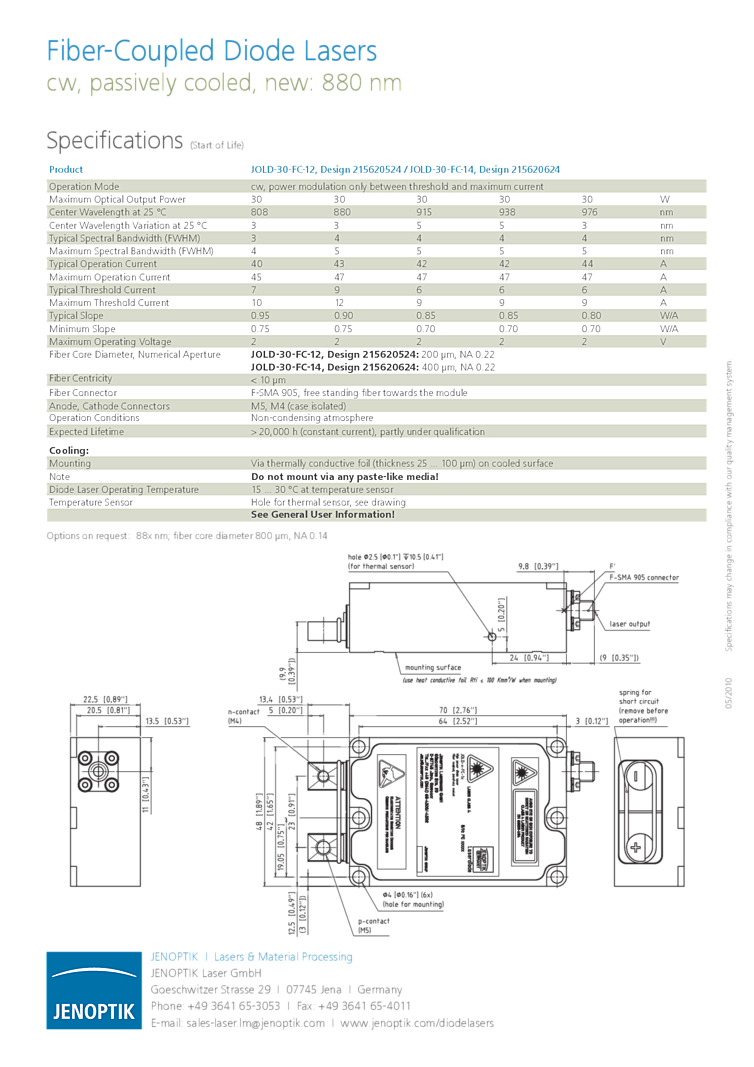

938nm device is a Jenoptik Laser Diode which is offered in a fiber coupled module package. These high power devices are CW mode and are passively cooled. The attached specifications sheet details the following key parameters and applications. These diode lasers offer up to 30Watt of optical output power in continuous wave mode of operation. They are specified with a fiber core diameter of either 200 μm or 400 μm (NA 0.22). These devices are cooled via a mounting plate and offer a long lifetime and high reliability with greater than 20,000 hours. Intended applications include medical applications, solid-state laser pumping and fiber laser pumping applications. Also referenced are material processing applications.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ イエナオプティック　ジャパン株式会社
