型番：　メーカー：Intense Photonics　商品コード：L001277

Diode Laser, 905nm, 50Watt

Diode Laser, 905nm, 50Watt
Diode Laser, 905nm, 50Watt

波長: 905nm-905nm
出力: 50W-50W
パッケージ: fiber coupled, TO-can
テクノロジー: high power pulsed

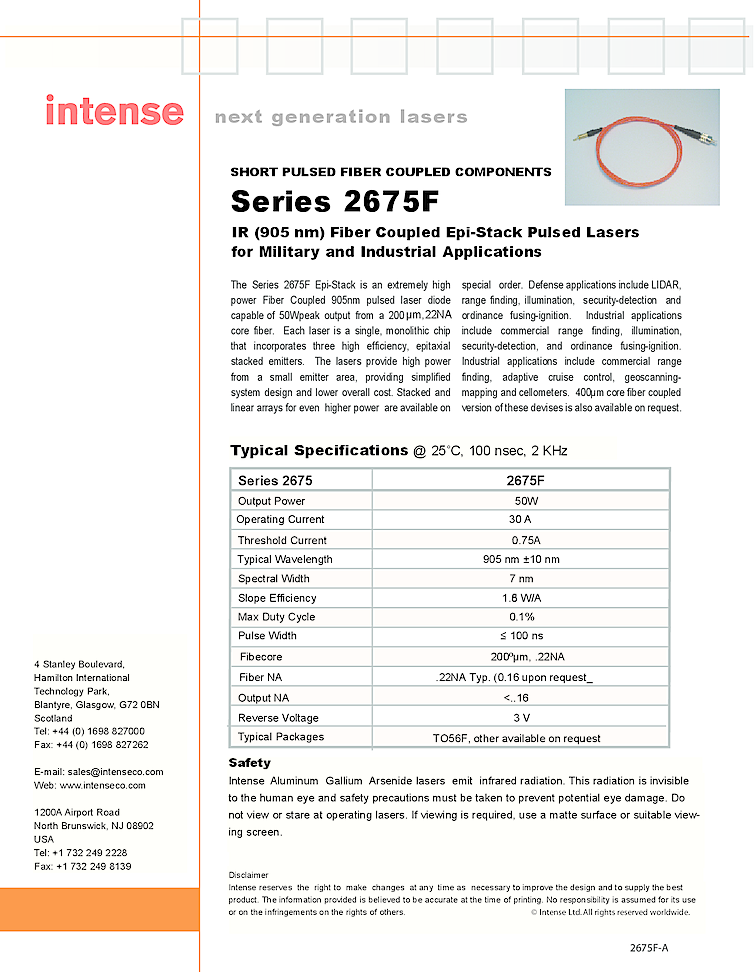

905nm SHORT PULSED FIBER COUPLED COMPONENTS: Intense Photonics Series (905 nm laser) Fiber Coupled Epi-Stack Pulsed Lasers for Military and Industrial Applications.

The Series 2675F Epi-Stack is an extremely high power Fiber Coupled 905nm pulsed laser diode capable of 50W peak output from a 200 core fiber. Each laser is a single, monolithic chip that incorporates three high efficiency, epitaxial stacked emitters. The lasers provide high power from a small emitter area, providing simplified system design and lower overall cost. Stacked and linear arrays for even higher power are available on special order. Defense applications include LIDAR, range finding, illumination, security-detection and ordinance fusing-ignition. Industrial applications include commercial range finding, illumination, security-detection, and ordinance fusing-ignition. Industrial applications include commercial range finding, adaptive cruise control, geoscanning, mapping
and cellometers. 400μm core fiber coupled version of these devises is also available on request.
