型番：　メーカー：三菱電機株式会社　商品コード：L001229

827nm, 260mW, TO-can diode laser

827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser
827nm, 260mW, TO-can diode laser

波長: 827nm-827nm
出力: 260mW-260mW
パッケージ: TO-can
テクノロジー: n/a

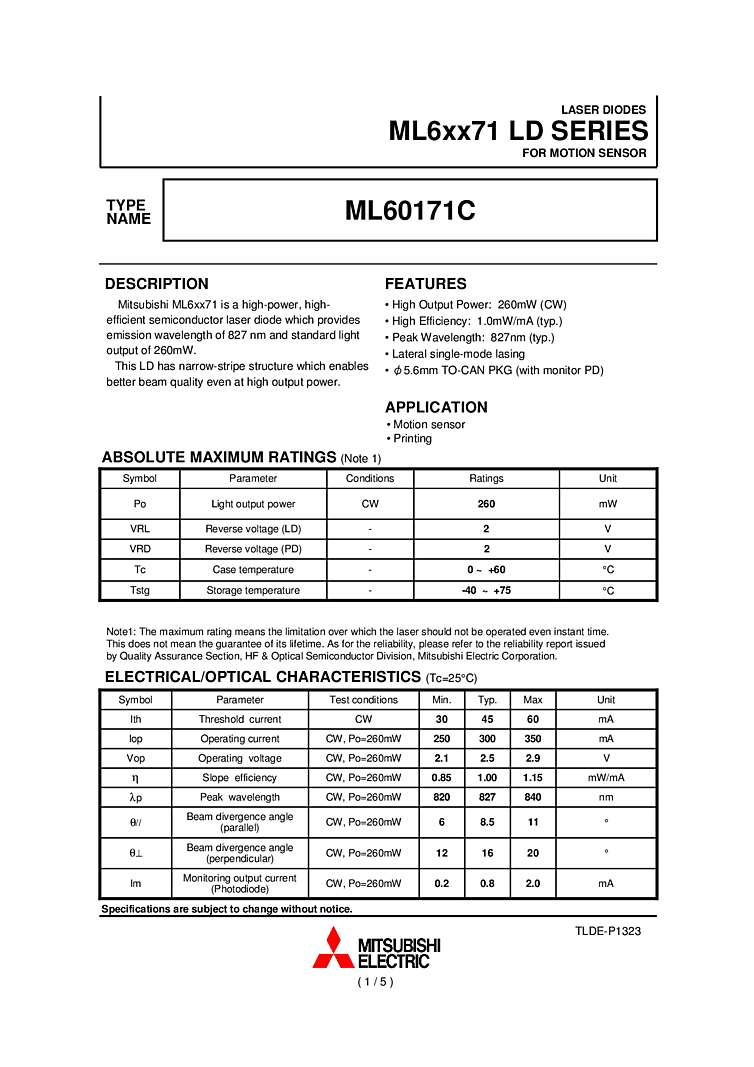

827nm Mitsubishi ML671 is a high-power, highly efficient semiconductor laser diode which provides emission wavelength of 827 nm and standard light output of 260mW. This LD has narrow-stripe structure which enables better beam quality even at high output power.

FEATURES:
- High Output Power: 260mW (CW)
- High Efficiency: 1.0mW/mA (typ.)
- Peak Wavelength: 827nm (typ.)
- Lateral single-mode lasing

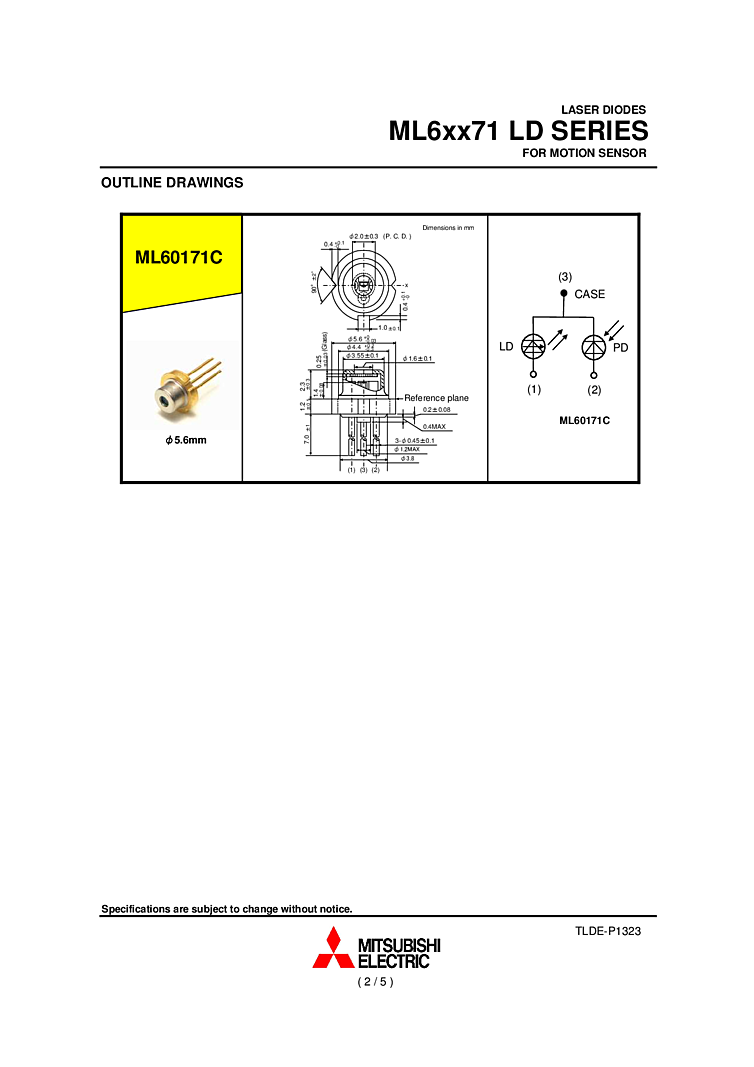

- 5.6mm TO-CAN PKG (with monitor PD)
