型番：OST-808-4W　メーカー：OsTech electro optical instruments 　商品コード：L001110

Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output

Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output
Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output
Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output
Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output
Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output
Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output
Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output
Turn-Key Calibrated 808nm, 4 Watt Laser Diode Source and Control System with Fiber Coupled Output

メーカー希望小売価格: $6,940 波長: 808nm-808nm
出力: 4W-4W
パッケージ: Turn-Key Source and Control System
テクノロジー: High Power Multi Mode

Product Overview:
These fully integrated turn-key 808nm source and control units include a fiber coupled laser diode source. These units offer up to 4 Watts of available output power, and can be modified to support power levels up to 100W depending on the source module. An integrated 4 Watt fiber coupled source at 808nm is precisely controlled and delivers a high stability output.

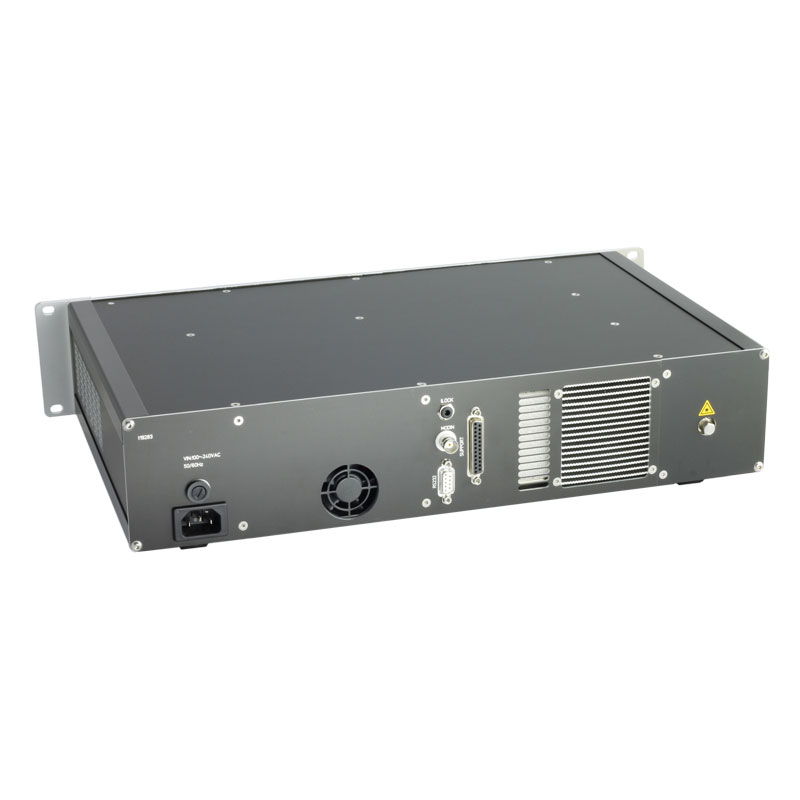

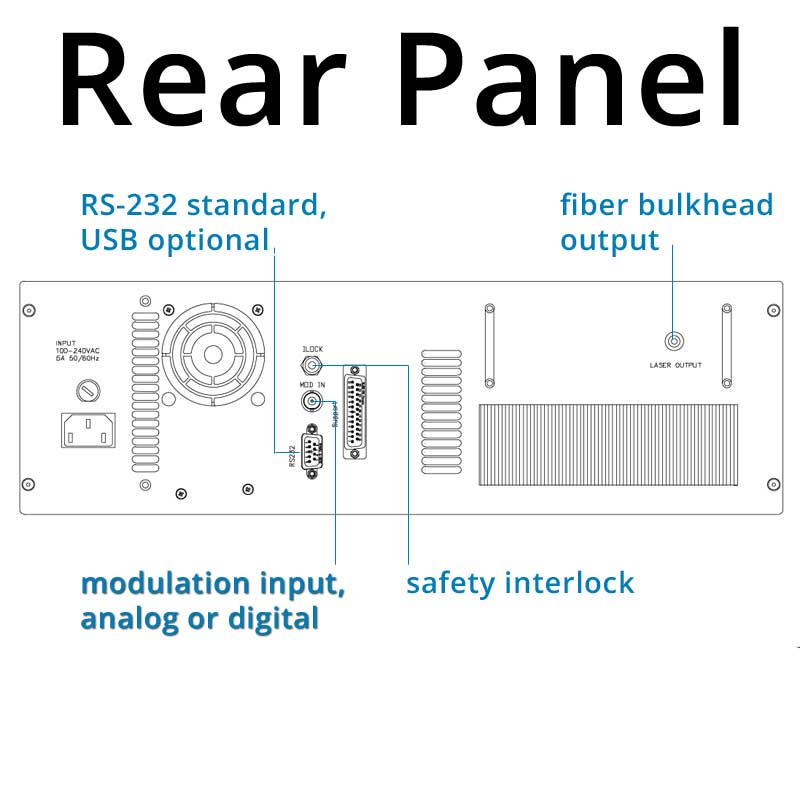

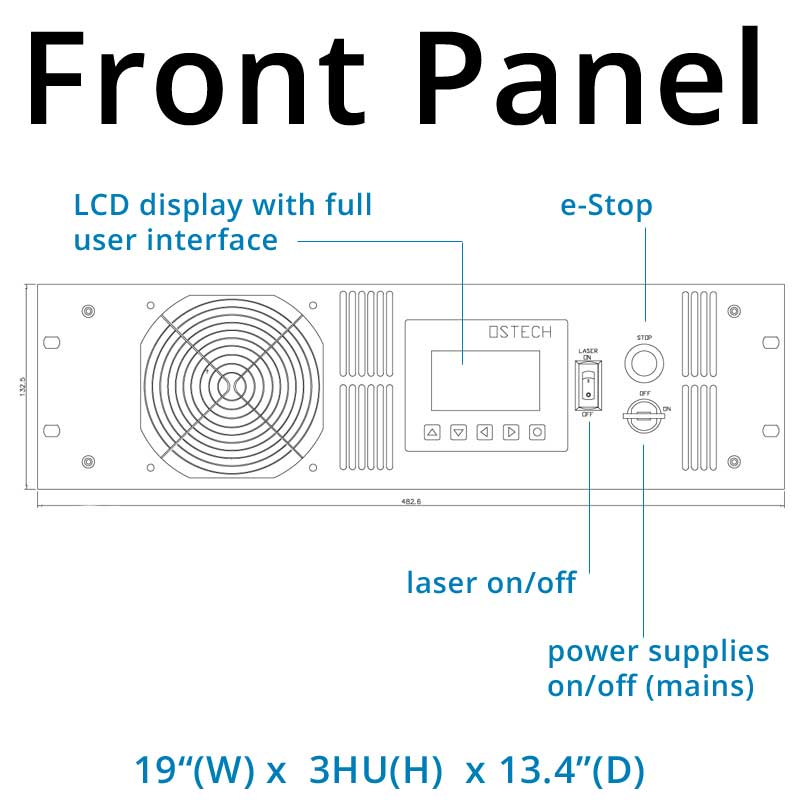

These systems include a laser source which is housed in a high heat load module with integrated TEC, thermistor and monitor photodiode. They also offer a precision high power laser diode current source and a temperature controller and cooling plate assembly integrated into a 19 inch rack-mount enclosure. The enclosure chassis ships with kickstand style feet for benchtop use. These units offer full front panel operation or a remote interface via RS-232 or USB.

Multiple laser diode protection features ensure that the laser diode module is protected at all times, while the high power temperature controller with full PID control loop provides fast and efficient heat removal. Users have full control of the laser module power through the front panel interface or remotely by USB.
