型番：　メーカー：Lasertel Inc　商品コード：L001103

808nm-976nm, 100W Laser Diode

808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode
808nm-976nm, 100W Laser Diode

波長: 808nm-976nm
出力: 100W-100W
パッケージ: QCW, array, S6
テクノロジー: high power array

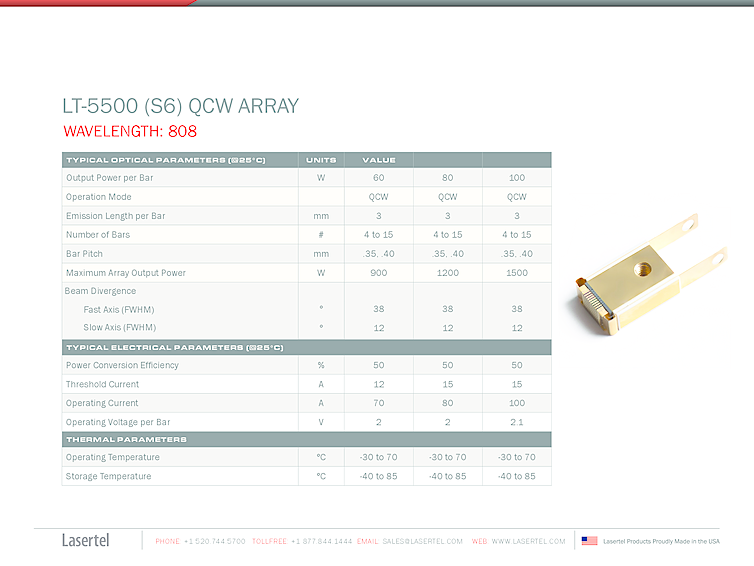

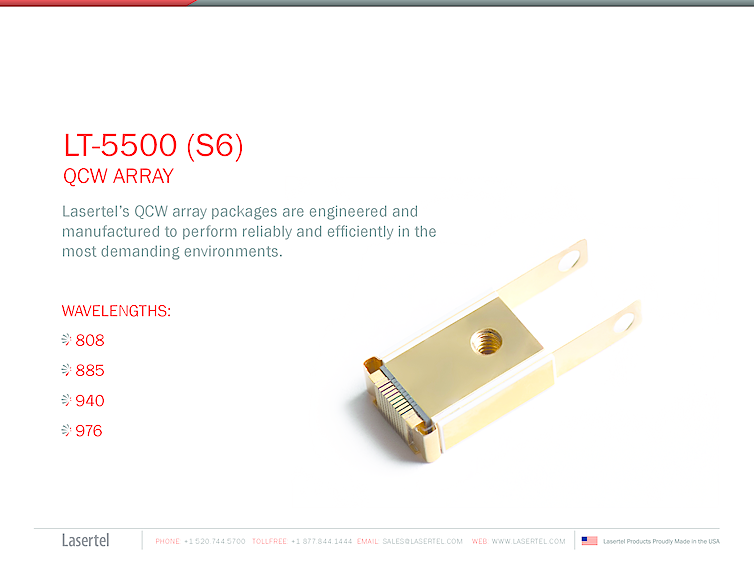

808nm, 885nm, 940nm, 976nm Lasertel Laser Diode is a QCW high power array in an S6 package. Lasertel devices are engineered and manufactured to perform reliably and efficiently in the most demanding environments. The attached data sheet describes an output power per bar of up to 100W in QCW mode of operation. The number of bars varies from 3 to 15. The maximum output power for the array is 1500W. These Lasertel devices operate in QCW mode and have an emission length per bar of 3.3mm. Threshold current is specified up to 15 Amps. The operating current is specified up to 100 Amps. The power conversion efficiency of these high power Lasertel arrays is 50 percent.

Lasertel Inc., 7775 N. Casa Grande Hwy
Tucson, AZ 85743 USA
Tel: 520-744-5700
