型番:ARR191P800、ARR191P1200、ARR191P1600、ARR191P2400、ARR191P3200、ARR191P4800、ARR191P6400 メーカー:Northrop Grumman Corporation 商品コード:L001091

4, 12, 16, 24, 32-Bar AAAA Packages

波長: 790nm-1550nm
出力: 800W-6400W
電流: 95A-175A
電圧: 8.0V-64.0V
パッケージ: AAAA Package
テクノロジー: High power laser diode array

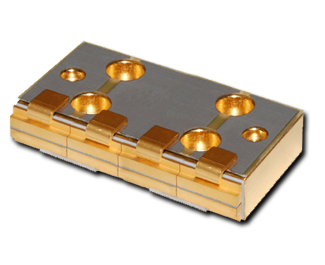

The AAAA package is a compact, conductively-cooled laser diode array. The AAAA package is available in pulsed configurations with up to 9.6 kW of peak power or in CW configurations with up to 160 W of continuous power.

The AAAA package mounts easily into a laser system or direct-diode application. It is available in any of CEO’s standard wavelengths (790-820 nm, 872-890 nm, 930-950 nm), and custom wavelengths are also available. Many configurations are available with fast-axis collimation, with divergence values less than 0.2° (FWHM).

価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
