型番:ARR190P600、ARR190P900、ARR190P1200、ARR190P1800、ARR190P2400、ARR190P3600、ARR190P4800 メーカー:Northrop Grumman Corporation 商品コード:L001085

6, 9, 12, 18, 24-Bar AAA Packages

波長: 790nm-1550nm
出力: 600W-4800W
電流: 95A-175A
電圧: 10.8V-48.0V
パッケージ: AAA package
テクノロジー: High power laser diode array

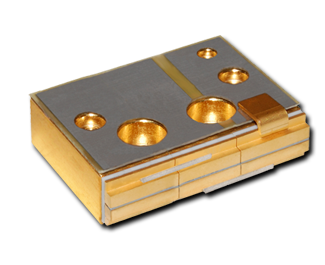

The AAA package is a compact, conductively-cooled laser diode array. The AAA package is available in pulsed configurations with up to 7.2 kW of peak power or in CW configurations with up to 120 W of continuous power.

The AAA package mounts easily into a laser system or direct-diode application. It is available in any of CEO’s standard wavelengths (790-820 nm, 872-890 nm, 930-950 nm), and custom wavelengths are also available. Many configurations are available with fast-axis collimation, with divergence values less than 0.2° (FWHM).

価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
