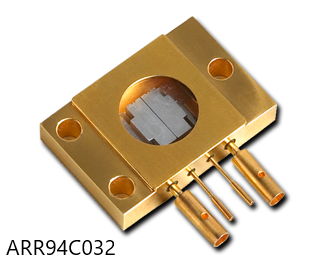

型番：ARR94C032、ARR94C040、ARR94P100、ARR94P200、ARR94P400、ARR94P800、ARR94P1200、ARR94P1600　メーカー：Northrop Grumman Corporation　商品コード：L001079

1, 2, 4, 6, 8-Bar Hermetically Sealed Packages

1, 2, 4, 6, 8-Bar Hermetically Sealed Packages
1, 2, 4, 6, 8-Bar Hermetically Sealed Packages
1, 2, 4, 6, 8-Bar Hermetically Sealed Packages
1, 2, 4, 6, 8-Bar Hermetically Sealed Packages

Hermetically Sealed データシート.pdf

波長: 790nm-1550nm
出力: 32W-1600W
電流: 22A-175A
電圧: 1.7V-16.0V
パッケージ: Hermetically sealed package
テクノロジー: High power laser diode array

The CEO hermetically-sealed package is designed to withstand a variety of environmental conditions. It is impervious to dust and moisture, both of which can cause degradation or failure to unprotected laser diode arrays. Available with output powers of up to 2.4 kW (QCW) or 40W (CW), the package is ideally-suited for laser illumination and laser range-finding applications.

The package comes standard with a 10 kΩ thermistor that enables the user to monitor the temperature of the device. Other monitoring electronics are available upon request.

In addition to this standard laser diode array, CEO can design and develop hermetically-sealed arrays in a variety of other configurations to meet customer requirements.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
