型番：ARR121C080、ARR121C160、ARR121C160-H、ARR121P800、ARR121P1200、ARR121P1600、ARR121P2400、ARR121P3200、ARR121P6400　メーカー：Northrop Grumman Corporation　商品コード：L001059

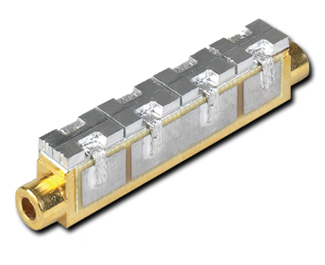

4, 8, 12, 16, 32-Bar Stretch Derringer 4 Long Packages

4, 8, 12, 16, 32-Bar Stretch Derringer 4 Long Packages
4, 8, 12, 16, 32-Bar Stretch Derringer 4 Long Packages
4, 8, 12, 16, 32-Bar Stretch Derringer 4 Long Packages
4, 8, 12, 16, 32-Bar Stretch Derringer 4 Long Packages

Derringer 4 Long データシート.pdf

波長: 780nm-975nm
出力: 80W-6400W
電流: 25A-175A
電圧: 6.8V-64.0V
パッケージ: Derringer package
テクノロジー: High power laser diode array

The Derringer package features a proprietary water cooling design that enables excellent heat extraction without the need for deionized water. The arrays are well-suited to side-pumping of solid-state laser (SSL) crystals, as well as any direct diode application which requires multiple bars in a linear configuration. The 4-long Derringer features an emission output length of approximately 4 cm. CW output powers of up to 160W are available. For QCW configurations, the maximum output is 9.6 kW out of a 32-bar array.

見積りBOXへ入れる 欲しい物リストに登録
メーカーWebサイトへ
価格 地域 代理店
要問い合わせ ノースロップ・グラマン ジャパン
